This is a modification of the separation cable that connects the control head to the main body of the Yaesu FT series of dual and quad band radios. These include the FT-7800R, 7900R, 8800R and 8900R. To my mind the main problem with separating the radio body from the control head is that it requires not one but two cables. There is the RJ-12 equipped cable that connects the control head to the radio, and then there is the external speaker extension assuming one wants the speaker anywhere near the controls.

          My solution was to combine both functions into one cable. A Cat5e cable of suitable length (it does have to reach from where the main body is mounted to where the control head is sited). The Cat5e cable has 8 conductors in 4 pairs. By slitting the outer sheath at about 9 inches from each end for about 1 inch and removing the RJ-45 connectors from both ends, it is possible to relatively easily pull the brown/white and brown pair out through the slits. The application of a couple of properly sized pieces of heat shrink will seal up the slits.

             The next step is to pre-install two more pieces of heatshrink further up each end of the Cat5e cable. These will be used to cover the splices where the audio pigtails are soldered to the brown/white and brown pair of wites. Obviously this pair will be shortened considerably when the mono audio pigtails are soldered in place. In order to avoid having to use even more different sizes of heatshrink, I place the "hot lead solder joint to the rear of the junction and the ground side forward of the junction. Then the pre-installed heatshrink is slid over the juction point to secure the "pigtail" to the Cat5e cable. The next step is to install the mono plug and jack. The plug will go on one "pigtail" and the jack will go on the other.11

              Once this is completed, it remains only to install RJ-12 EZ modular connectors at both ends. Make sure that each set of wires is installed in the RJ-12 EZ in the same order. I used the standard order of Cat5e cable:

pin 1  orange/white

pin 2  orange

pin 3  green/white

pin 4  green

pin 5  blue/white

pin 6  blue

The orientation of the modular connector is tab up looking at the back of the connector with pin 1 at the left side of the connector. the wire color should be orange/white at pin 1. I highly recommend EZ modular connectors simply because installation of each individual wire is so easy. Simply strip the cable back about 1 and 1/2 inches and straighten each wire separately. No need to be too fussy about this step. Then insert each wire into it's appropriate position. Since the wires go completely through the connector it is easy to verify that each wire is in the proper position. Once all the wires are inserted, use a modular crimper to crimp the contacts into each wire. Once you are satisfied with the crimp the excess wire that is sticking out of the nose of the modular connectoris simply cut away with a utility knife. There is even a small ledge under the point where the wires protrude to make cutting off the excess easy.



           This is a view that has not been seen in these pages before. The new shelf is above the bending brake with the 3 green patches on the edge. As you can see, it is already full of tools and supplies. THe area beneath the new shelf now holds the bending brake. Behind that is the storage spot for the drill packs and spare batteries for the drill and the circular saw. To the right of the brake is a ring of welding rod that holds the container for more rods and aluminum flat stock. Next is the hanger for the heat gun on another bookcase that holds heatshrink, Power Pole connectors etc. Below that are files, rasps etc.Under that is more storage, mainly for stuff I don't know what to do with right now.

               A new tool has been added to the workshop. As I age I find it harder and harder to make use of a tool that I use very often, a nibbling tool. The hand operated nibbler that I already have just took more effort than one hand could provide. I have now upgraded to a power nibbling tool operated by a corded electric drill. I have mounted the entire assemblage on a board so everything will stay aligned and I have tested it. It works very well except that it lacks a table on which to feed the work throught the nibbler head kind of like a router table. My son has volunteered to assist in building such a table when he comes to visit next month so that will add to the usefulness of the new tool. It certainly makes short work of cutting aluminum sheet or angle. Pictures to follow when we get it completed.

N1GY- The simple Approach to Ham Radio

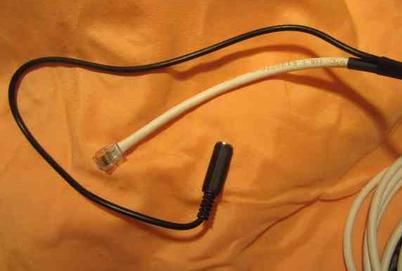

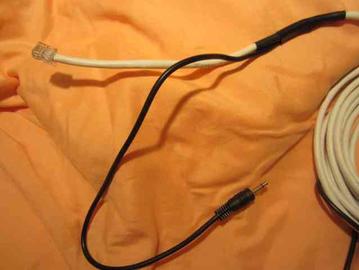

These two pictures show each end of the cable. Both ends of the white cable have male RJ-12 EZ modular connectors. The black "pigtails" have a female 3.5mm mono jack at the control head end so that one can plug in an external speaker. The other "pigtail" has the male 3.5mm plug which is plugged into the external speaker jack on the back of the radio main body. This particular example is made from a 15 foot Cat5e cable which after modification is about 14 feet 6 inches long. The stock Yaesu cable is around 20 feet long and so you can start with whatever length of Cat5e cable you require. I have also used Cat6 cables as well without any problems.
